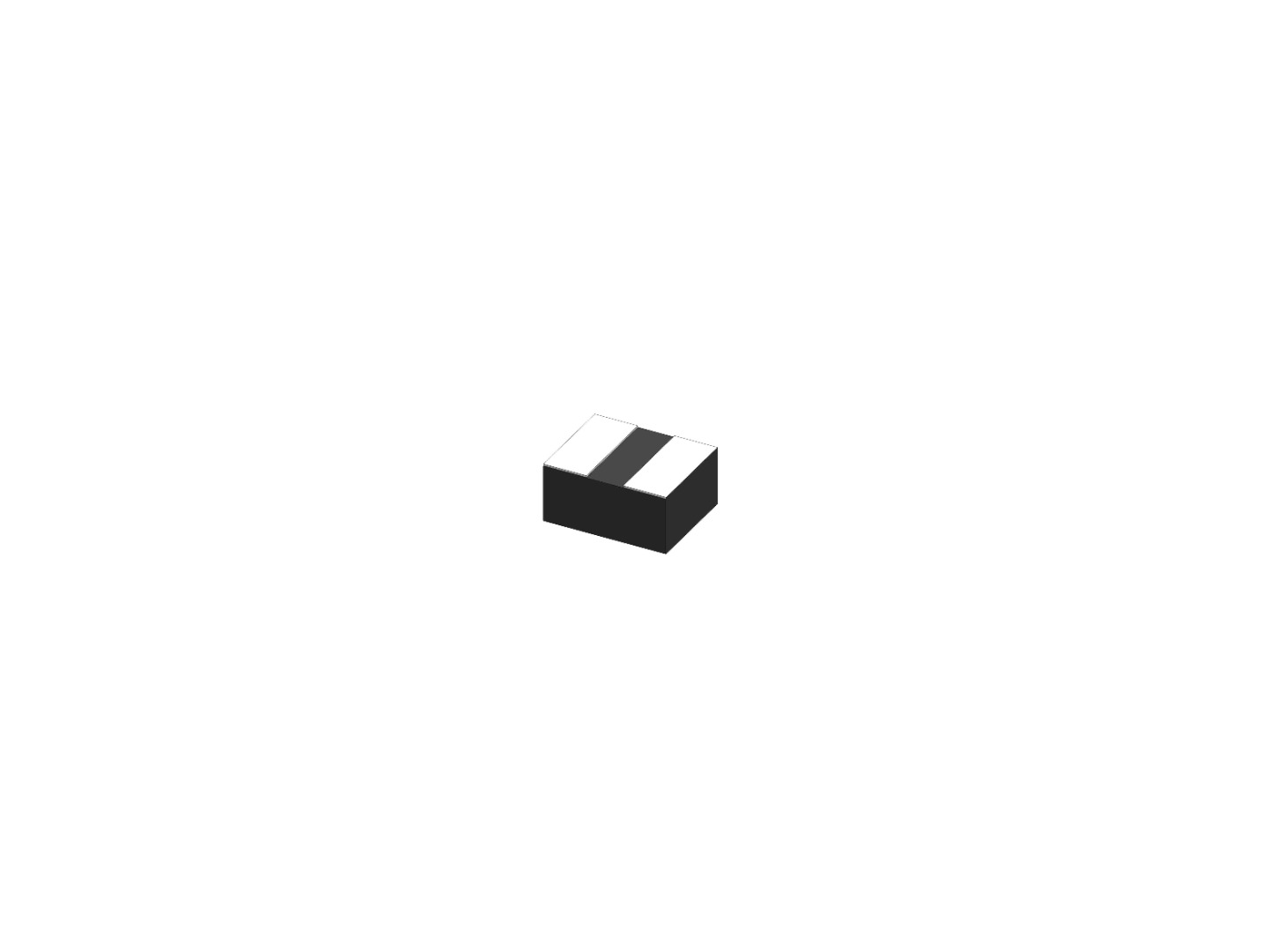

ITG offers a wide range of molded inductors from 1.6x1.2mm footprint to 17x17mm foot print for mobile and portable devices and automotive and industrial applications.

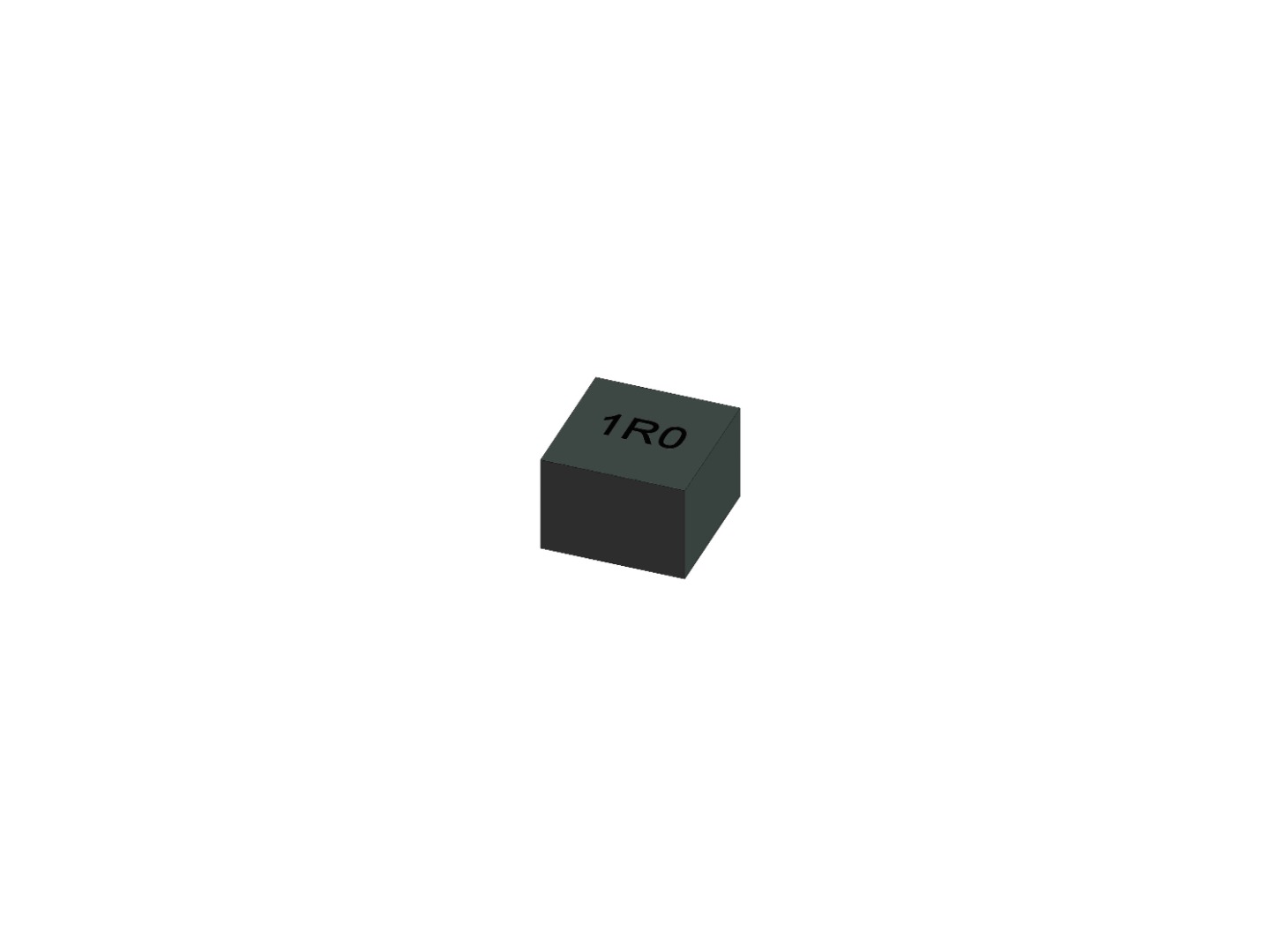

Series of Molded Inductor
Appearance Criteria for Molded Inductors
This technical paper is supplied as a service to our customers to clarify the appearance and electrical parameters of the ITG Molded Inductors SM and SMHC Series. The incentive is that it will give our customers a better understanding as to the type of cosmetic irregularities that may occasionally occur during the manufacturing process of the component or during the use of the component.
0.10uH-22.0uH, 20%, 3.0mOhm-330.0mOhm, 23.0A-1.25A Max. AEC-Q200 Grade 1 SMD Molded Inductor
7.30x6.80mm foot Print, 1.80mm Max. height SMD Power Inductor for high frequency applications.Operating frequency up to 5MHz.Inductance range of 0.10uH up to 10.0uH. Custom values are welcomed.High saturation current characteristics by distributed gapped metal dust core.Ideal for portable device, Pad, E-reader and high density DC to DC ConverterTape & Reel Quantity: 1500 piece per 13 inches reel. RoHS and HF compliant.
0.10uH-33.00uH, 20%, 0.63mOhm-200mOhm, 60.0A-2.50A Max. AEC-Q200 Grade 1 SMD Molded Inductor
0.20uH - 47.00uH, 20%, 0.60mOhm - 111.50mOhm, 68.0A - 3.8A Max. Automotive SMD Molded Inductor.
0.1uH-33.0uH, 20%, 0.33mOhm-49.5mOhm, 100.0A-7.0A Typ. AEC-Q200 Grade 1 SMD Molded Inductor.
SMD Molded inductor in 17.15 x 17.18mm foot print, 7.0mm height. Inductance : 0.22uH
