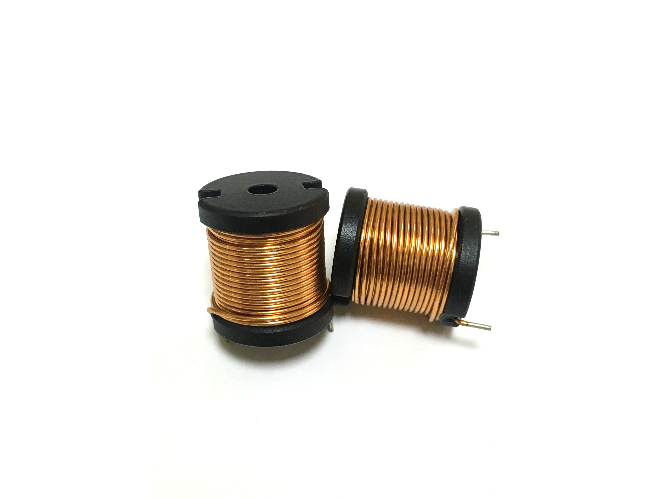

Boost & Storage Inductor

L5100 Series

DIP

    47uH to 4700uH, 10%, 15.2mOhm to 1429mOhm, 25Amp to 2.5Amp DIP Boost & Storage Inductor.

    • Power Line Chokes offer cost effective solution.
    • Inductance Range 47.0uH to 4700.0uH. Custom values are welcomed.
    • High current output chokes, up to 25.0 Amp for 47uH.
    • Ideal for Switching Regulators, Power amplifiers, RFI suppression, Filters, Power supplies, Speaker crossover, SCR and Triac Controls.
    • Operating temperature range of -55°C to + 130°C
    • RoHS & HF compliant.

Electrical Characteristic of L5100 Series

Part Number

Part Description

  • L5100-470KHF
  • 47uH, 10%, 15.2mOhm, 25Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-680KHF
  • 68uH, 10%, 22.08mOhm, 21Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-101KHF
  • 100uH, 10%, 28.38mOhm, 17Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-151KHF
  • 150uH, 10%, 45.16mOhm, 13.5Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-221KHF
  • 220uH, 10%, 66.85mOhm, 12Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-331KHF
  • 330uH, 10%, 95.8mOhm, 9.5Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-471KHF
  • 470uH, 10%, 134.5mOhm, 8Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-681KHF
  • 680uH, 10%, 182.8mOhm, 6.5Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-102KHF
  • 1,000uH, 10%, 295.5mOhm, 5.6Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-152KHF
  • 1,500uH, 10%, 402.6mOhm, 4.5Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-222KHF
  • 2,200uH, 10%, 658.3mOhm, 3.6Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-332KHF
  • 3,300uH, 10%, 853.78mOhm, 3.1Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
  • L5100-472KHF
  • 4,700uH, 10%, 1242.5mOhm, 2.5Amp Max. DIP Boost & Storage Inductor
  • LibraryAdd to My Library
  • SamplesAdd to Sample Cart
  • QuotationAdd to Quotation Cart
  • QuestionAsk a Question
